We were tasked with developing a durable urban hub in Krottenbach, in Vienna’s 19th district Döbling, to enhance the Neighborhood’s social and cultural fabric. The hub will counteract commercial displacement and gentrification while fostering community. The goal is to create adaptable, multifunctional spaces, including event venues for 300-500 people and accessible public areas, with a focus on improving local recreational opportunities.

Vision

This was to design a building as a vibrant community hub where people of all ages can come together for events, art galleries, and social gatherings. It offers spaces for creativity through various workshops and venues to enjoy concerts, lectures, coffee, and dinner dates.

Site plan

The site is located on Krottenbachstraße in the 19th district of Vienna, Döbling.

Plans

previous arrow
EG

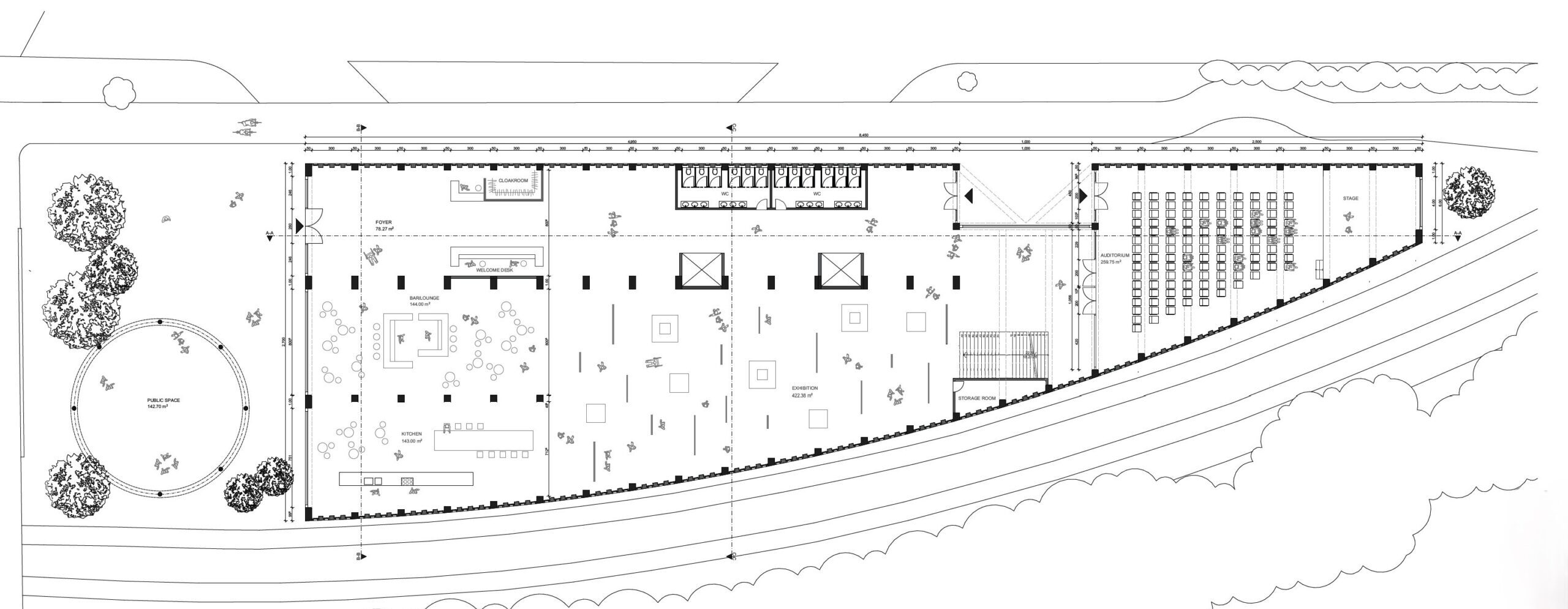

Ground Floor

OG

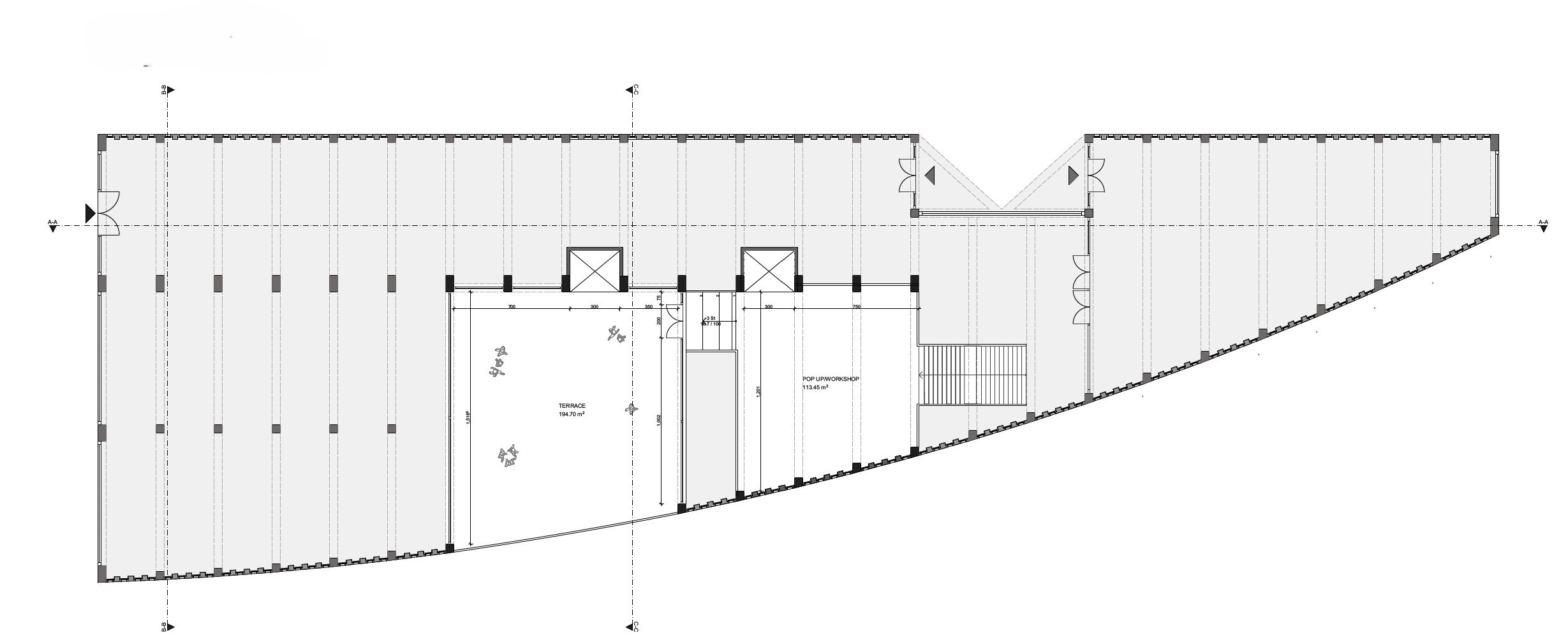

Upper Floor

section a-a

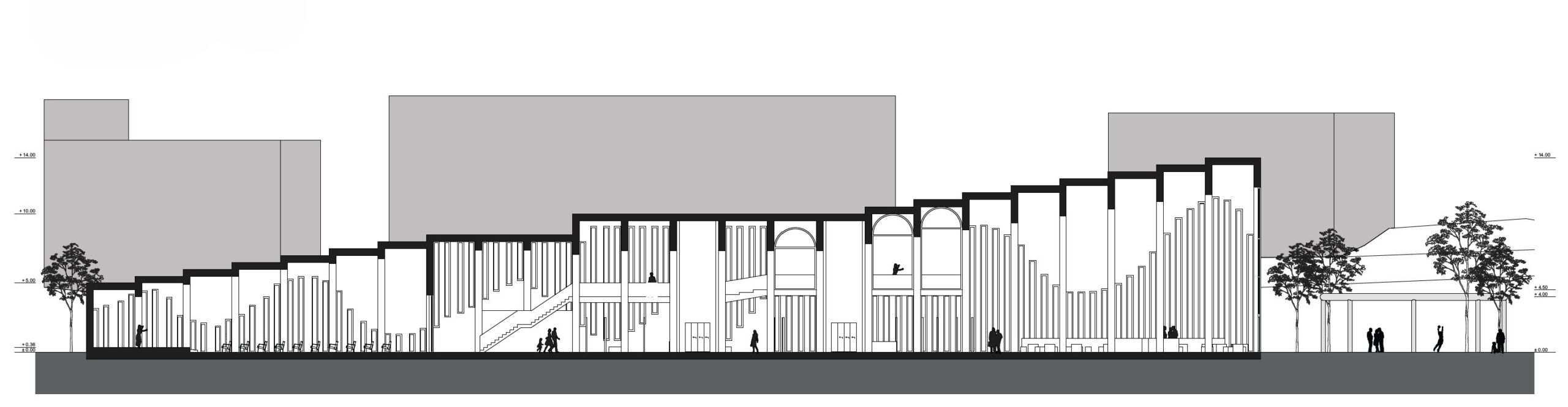

Sections A-A

B-B

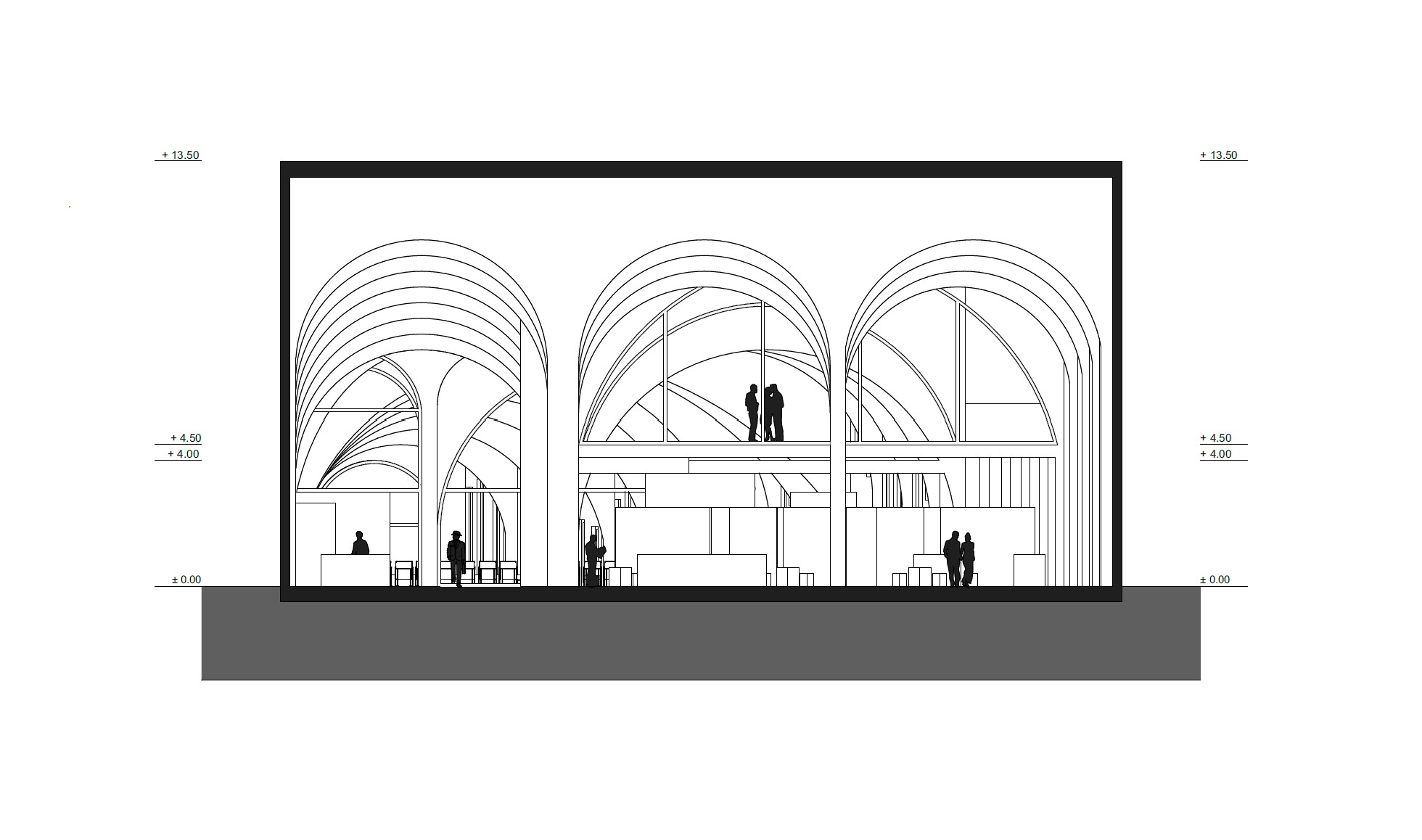

Section B-B

C-C

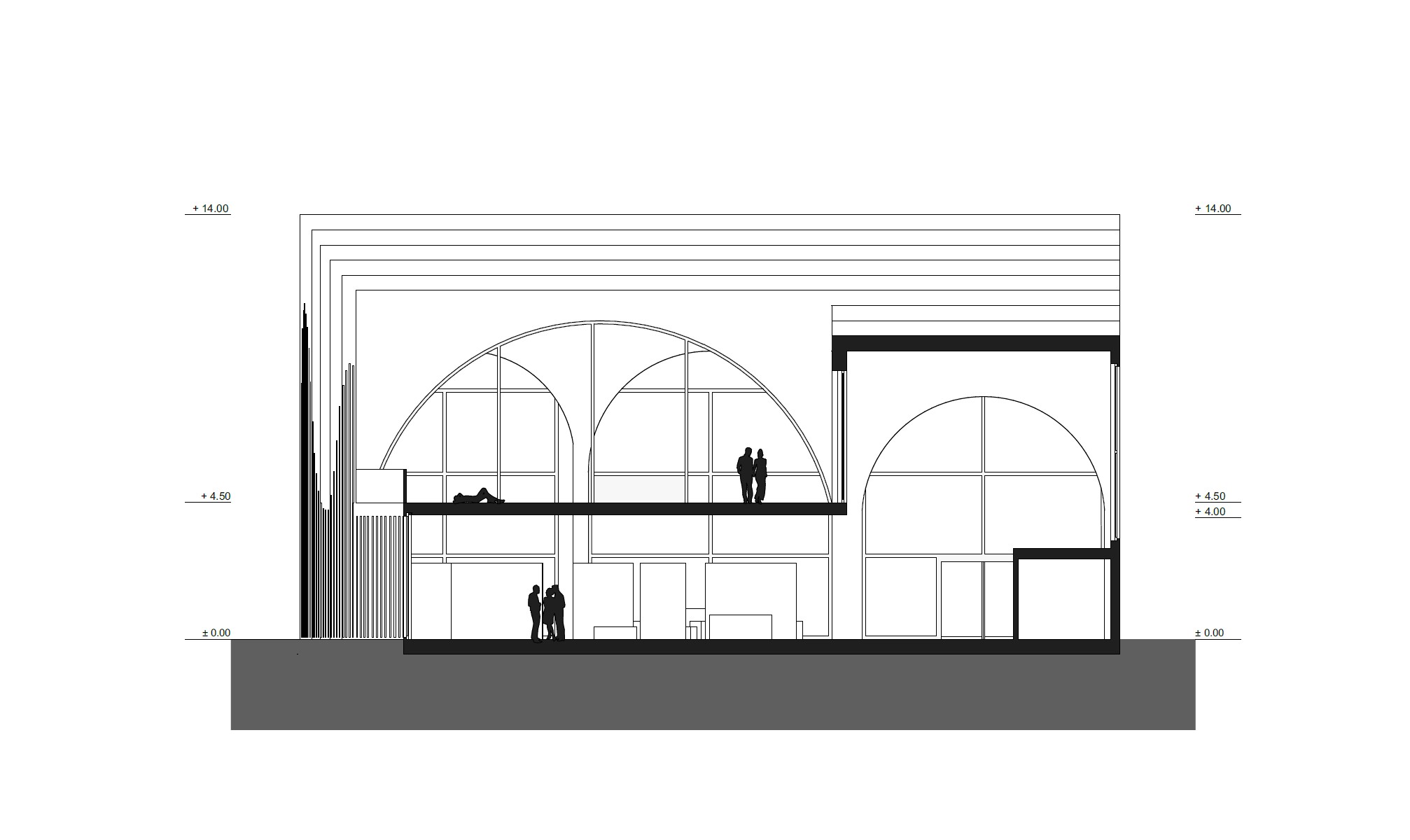

Section C-C

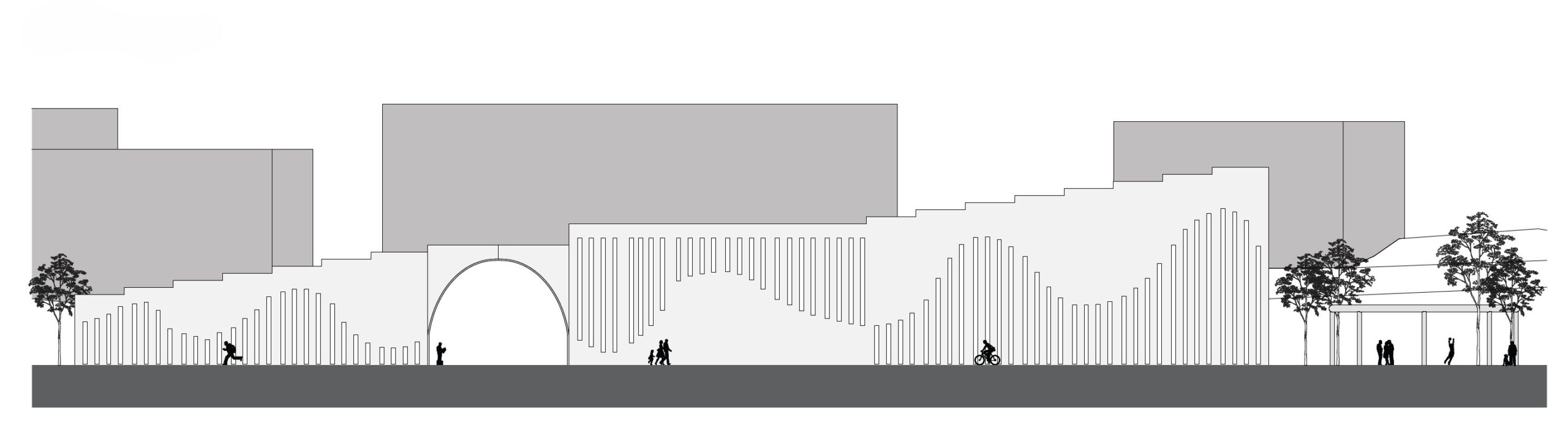

north

North Facade

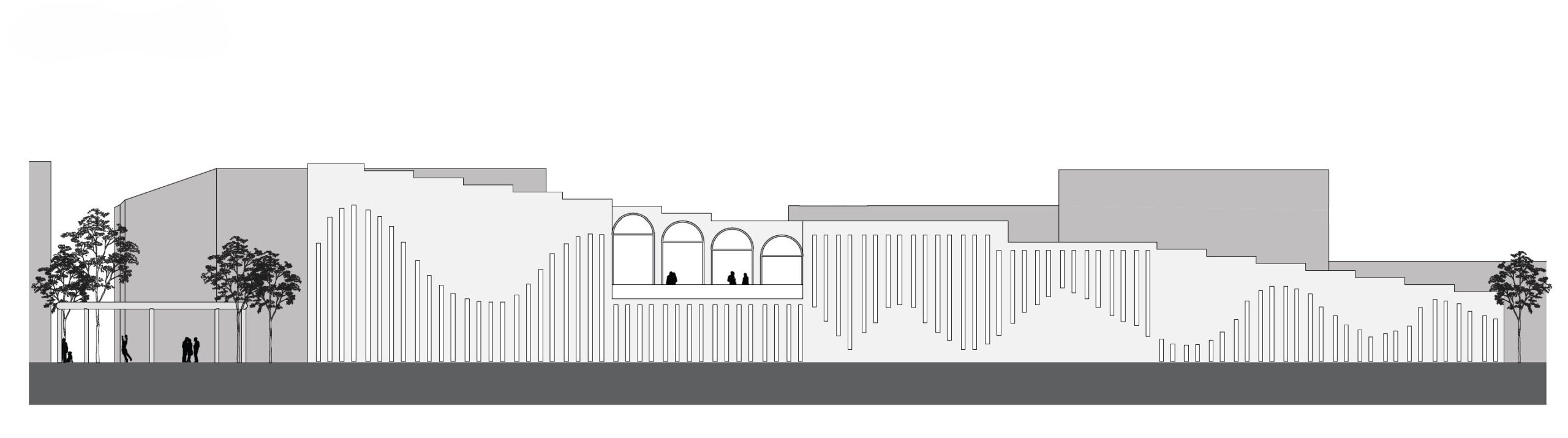

south

South Facade

next arrow
previous arrow
struktur1

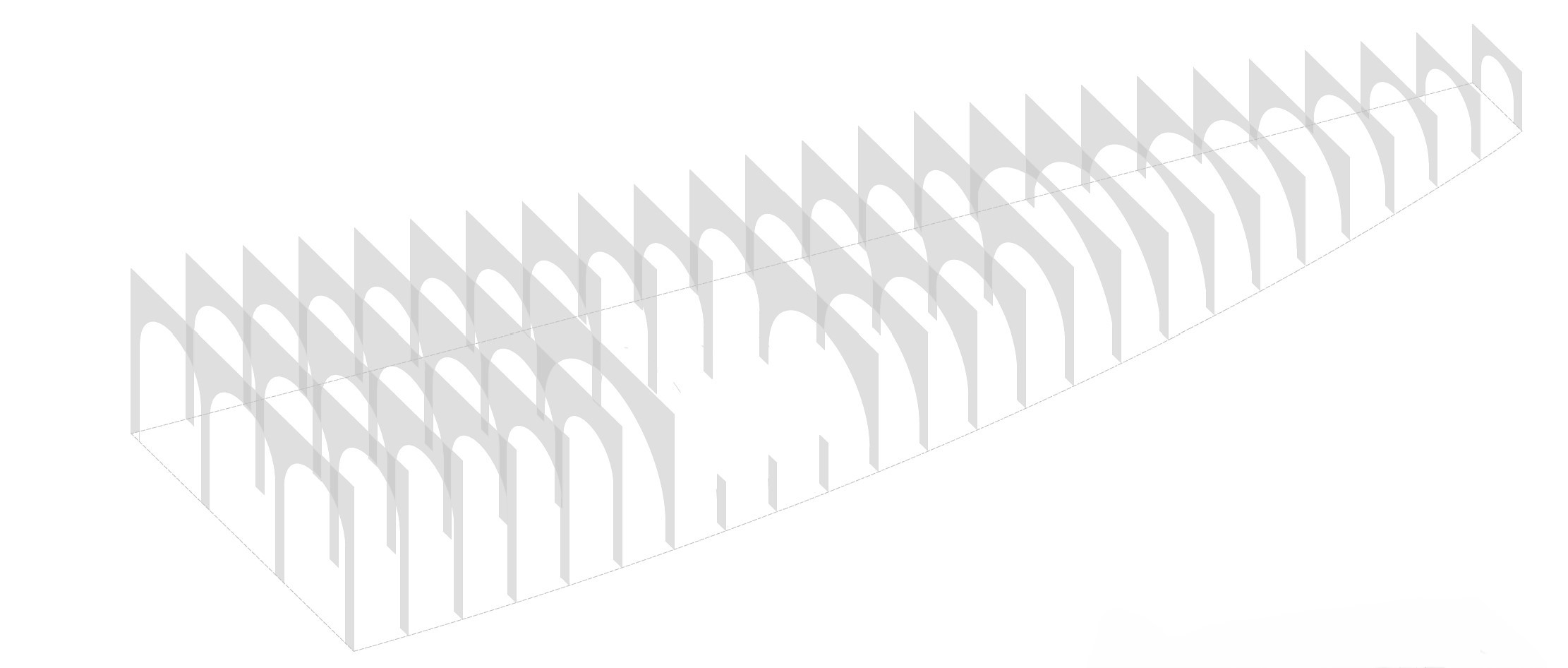

Load-bearing Structure

struktur2

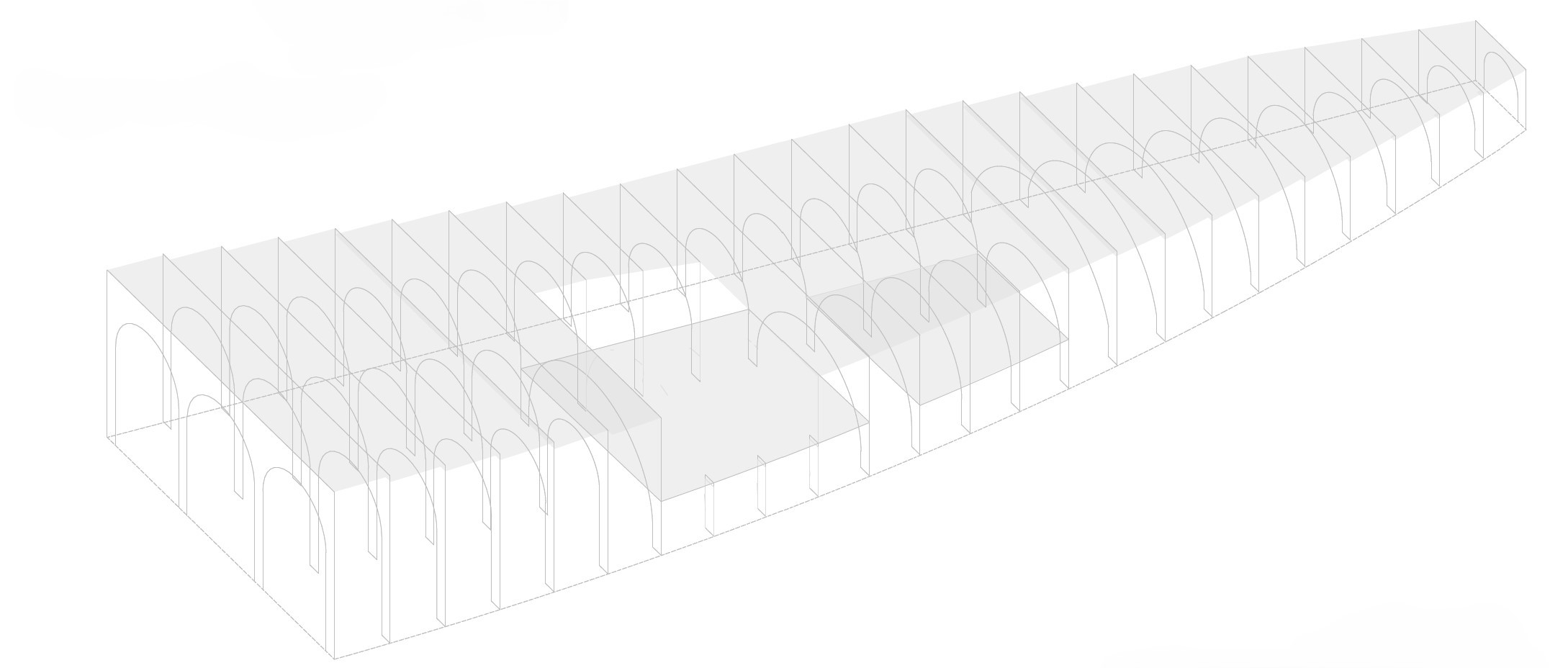

Bracing Ceilings

struktur3

Point Foundations

struktur4

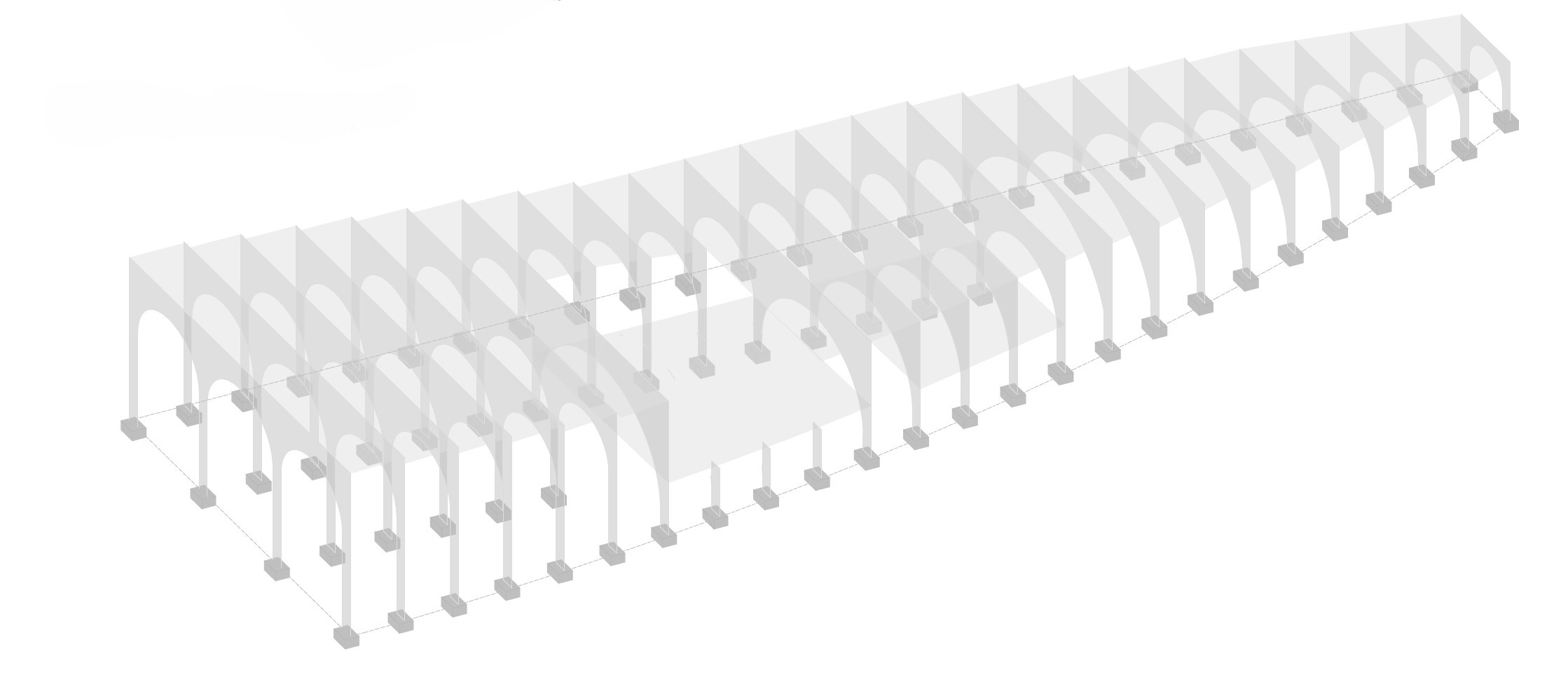

Entire Structure

next arrow

Structure

Details

previous arrow

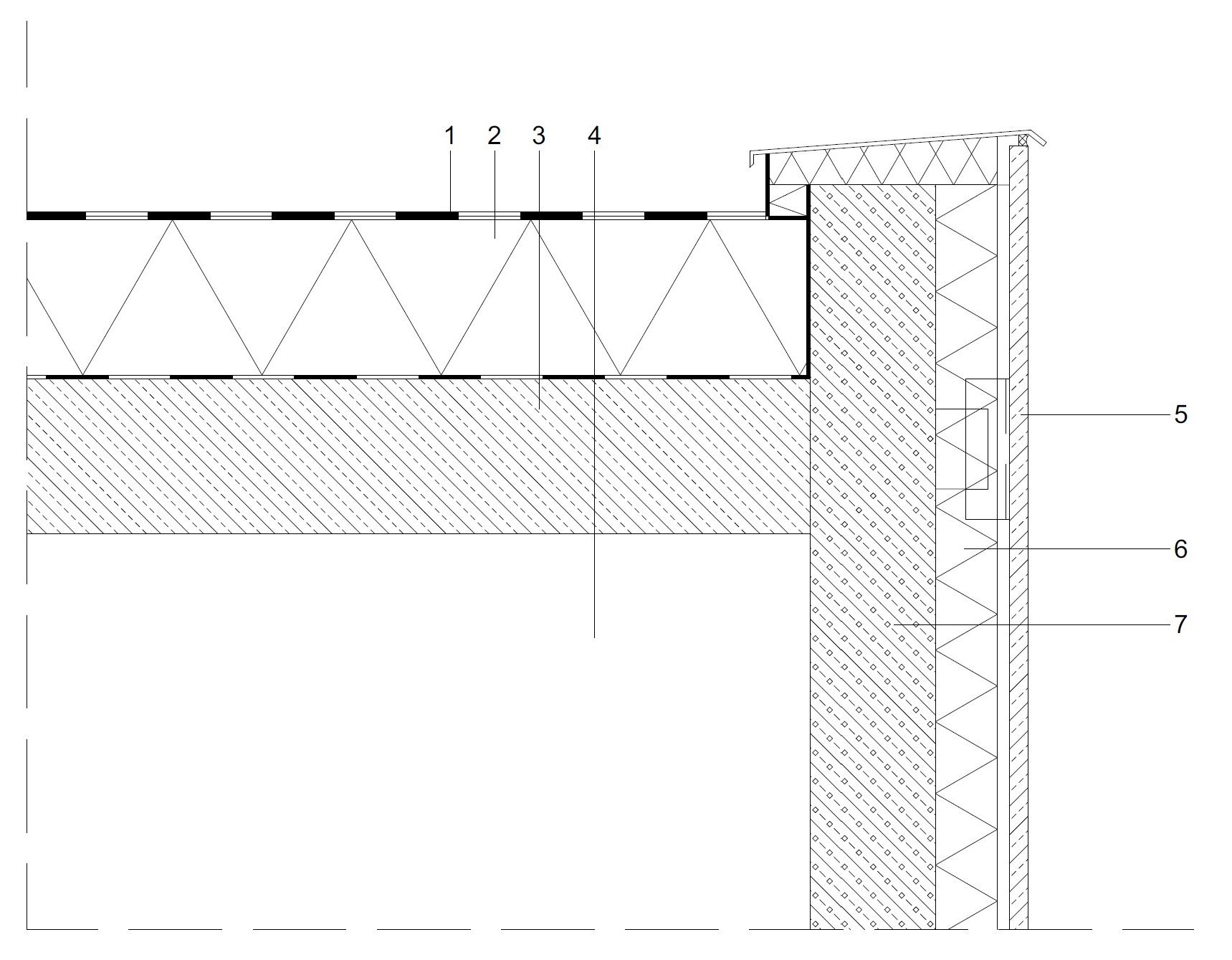

detail 1 – cut

1. Waterproofing
2. Insulation – 25 cm
3. Reinforced concrete arcade – 25 cm
4. Reinforced concrete arcade
5. Fiber cement boards – 3 cm
6. Insulation – 10 cm
7. Infra-lightweight concrete wall – 20 cm

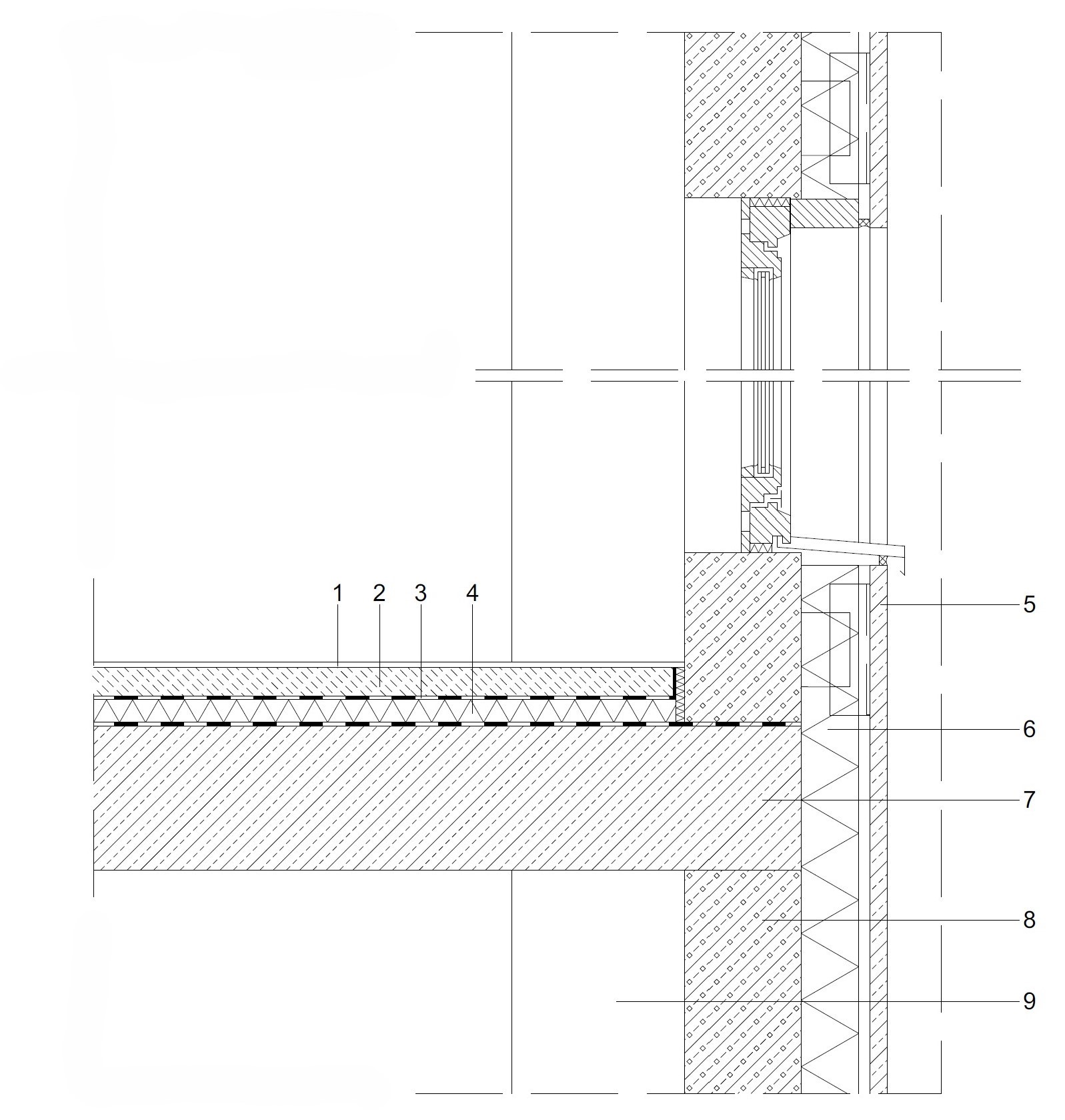

detail 2 – cut

1. Floor covering
2. Screed – 5 cm
3. Waterproofing
4. Impact sound insulation – 4 cm
5. Fiber cement boards – 3 cm
6. Insulation – 10 cm
7. Reinforced concrete ceiling – 25 cm
8. Infra-lightweight concrete wall – 20 cm
9. Column of the arcade – 50 cm

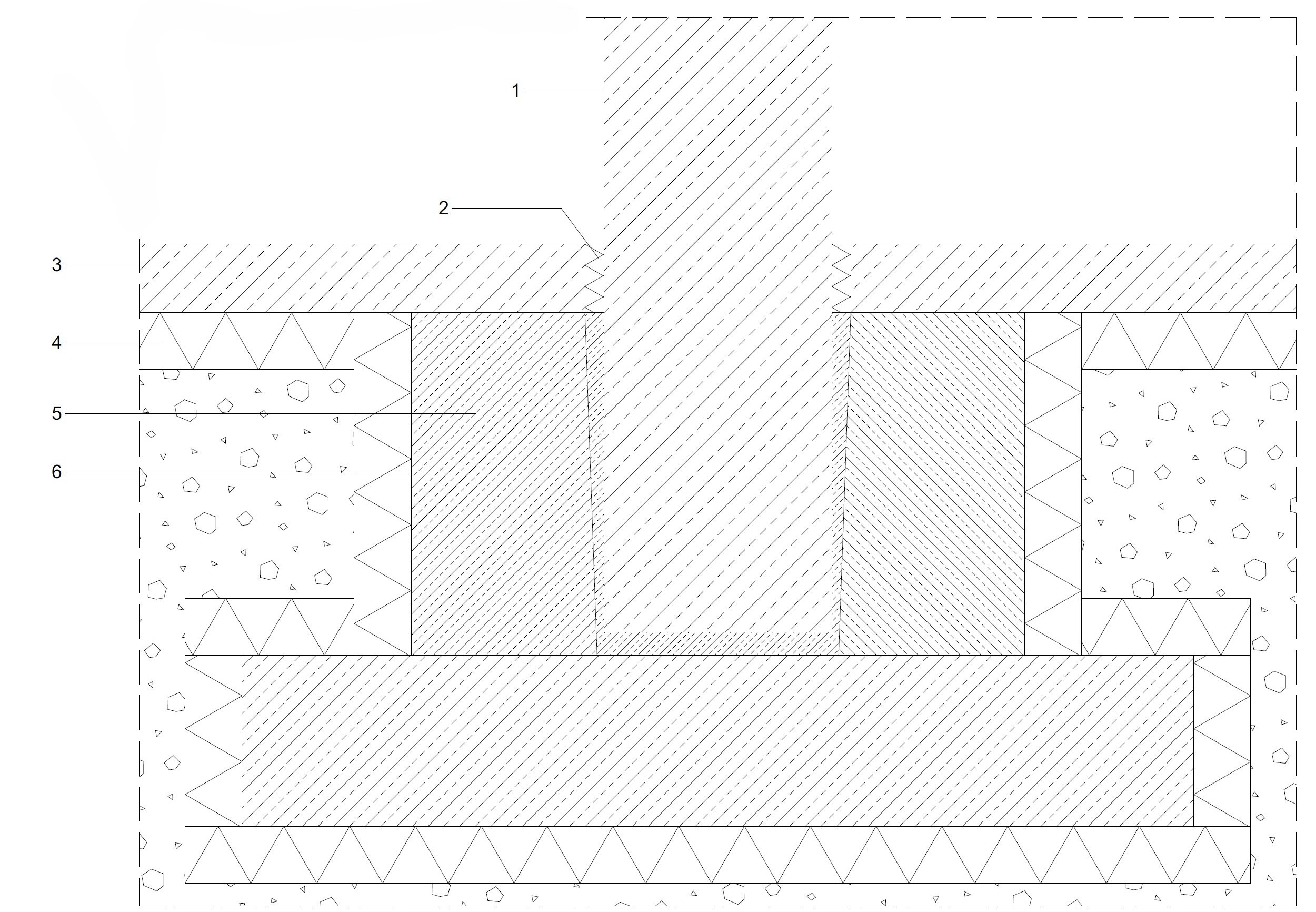

detail 3 – cut

1. Column of the arcade – 100 cm
2. Expansion joint
3. Reinforced concrete ceiling – 30 cm
4. Insulation – 25 cm
5. Socket foundation
6. Profiled joint

next arrow
previous arrow
hochbau m3
hochbau m 1
hochbau m 4
hochbau m 2
hochbau m
next arrow

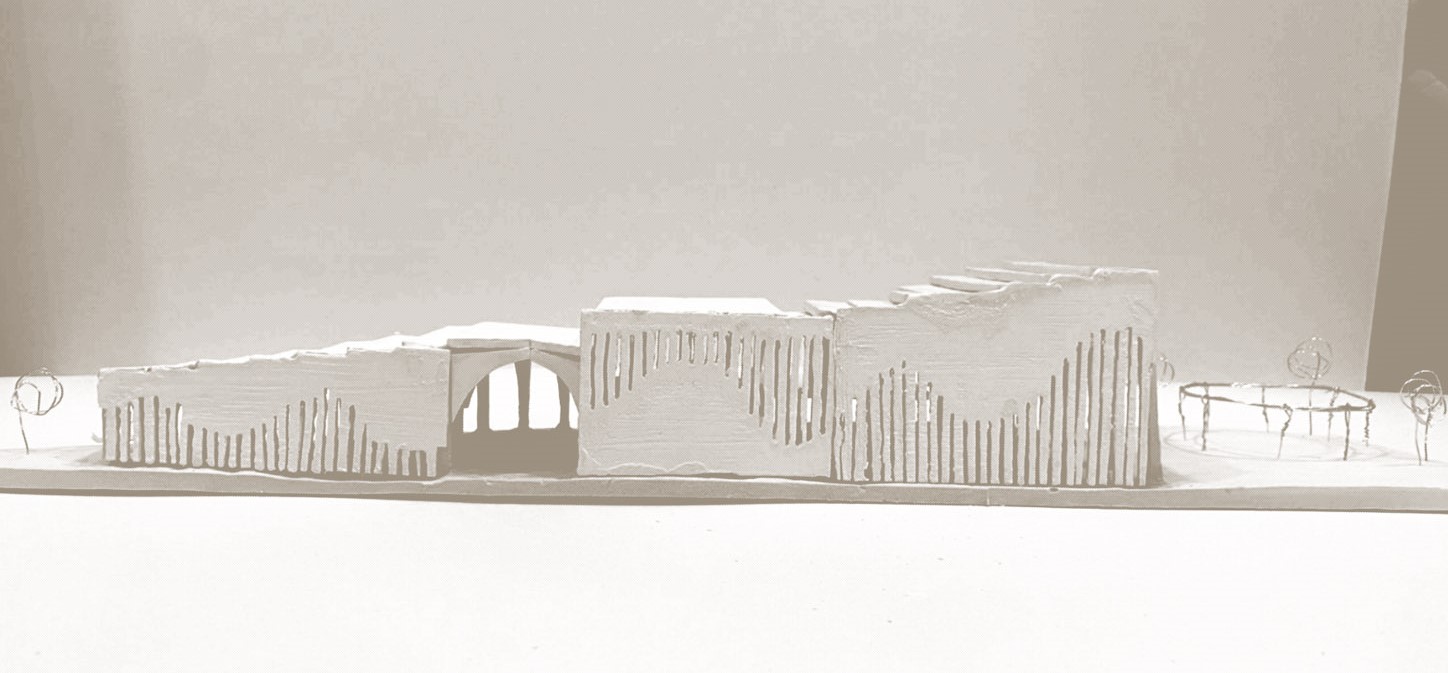

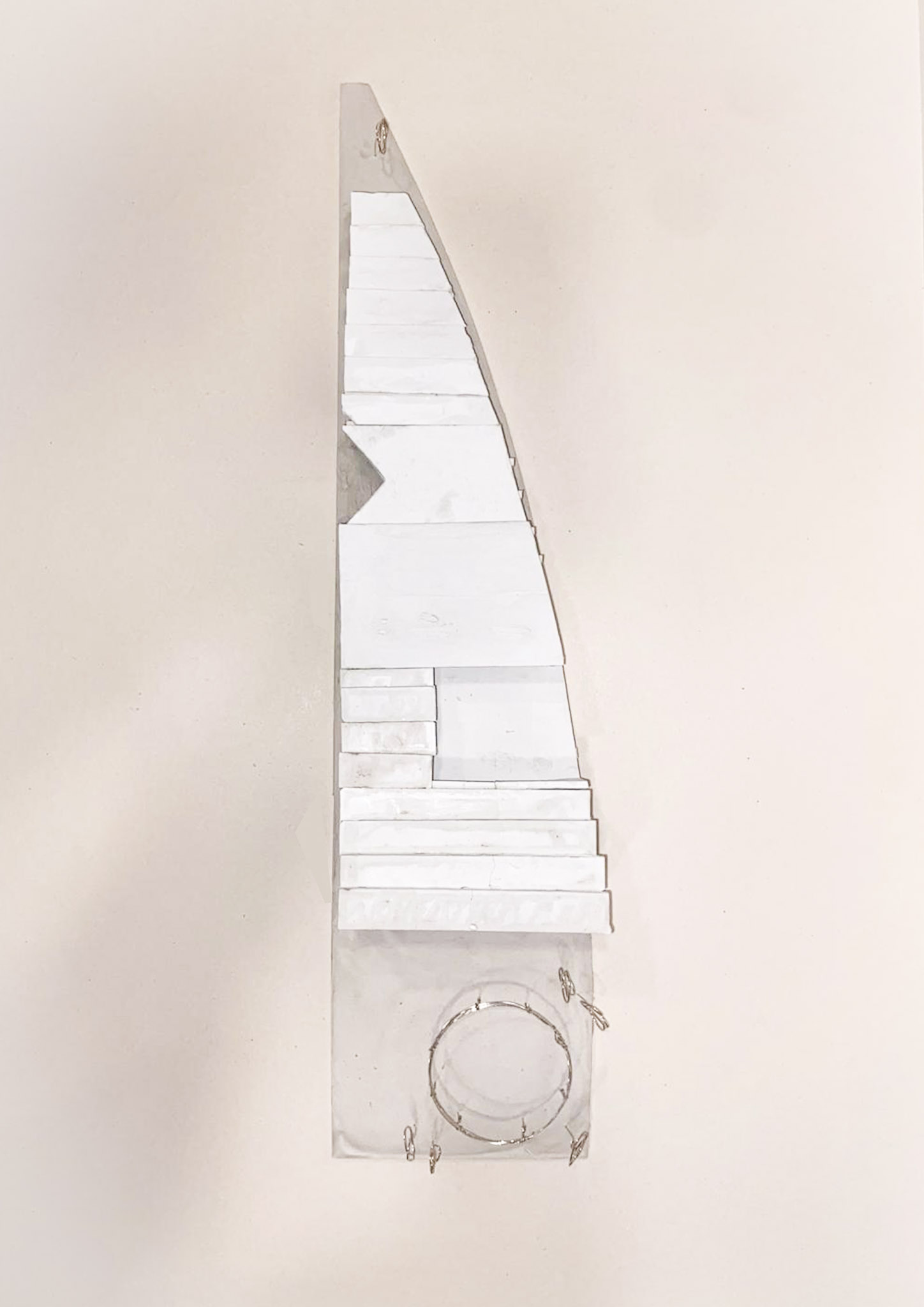

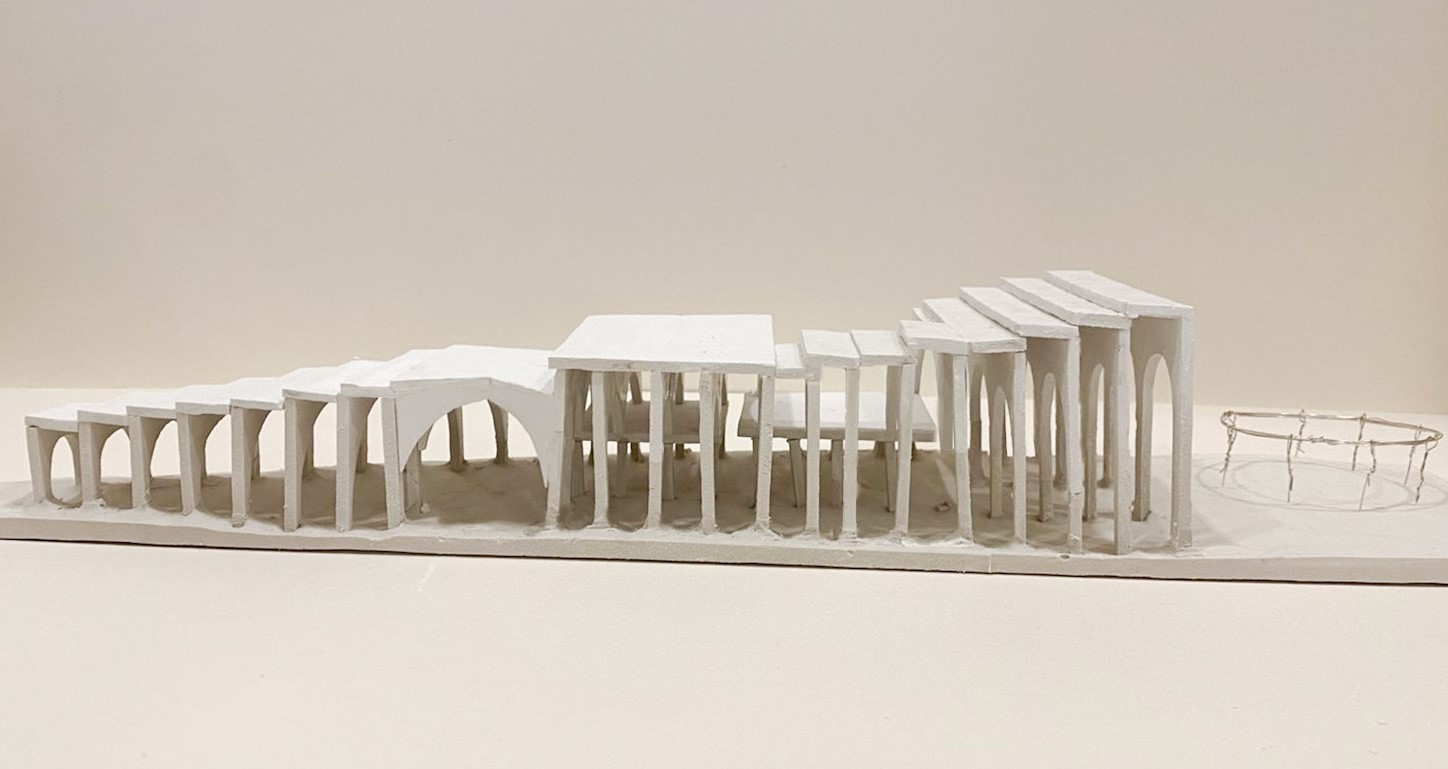

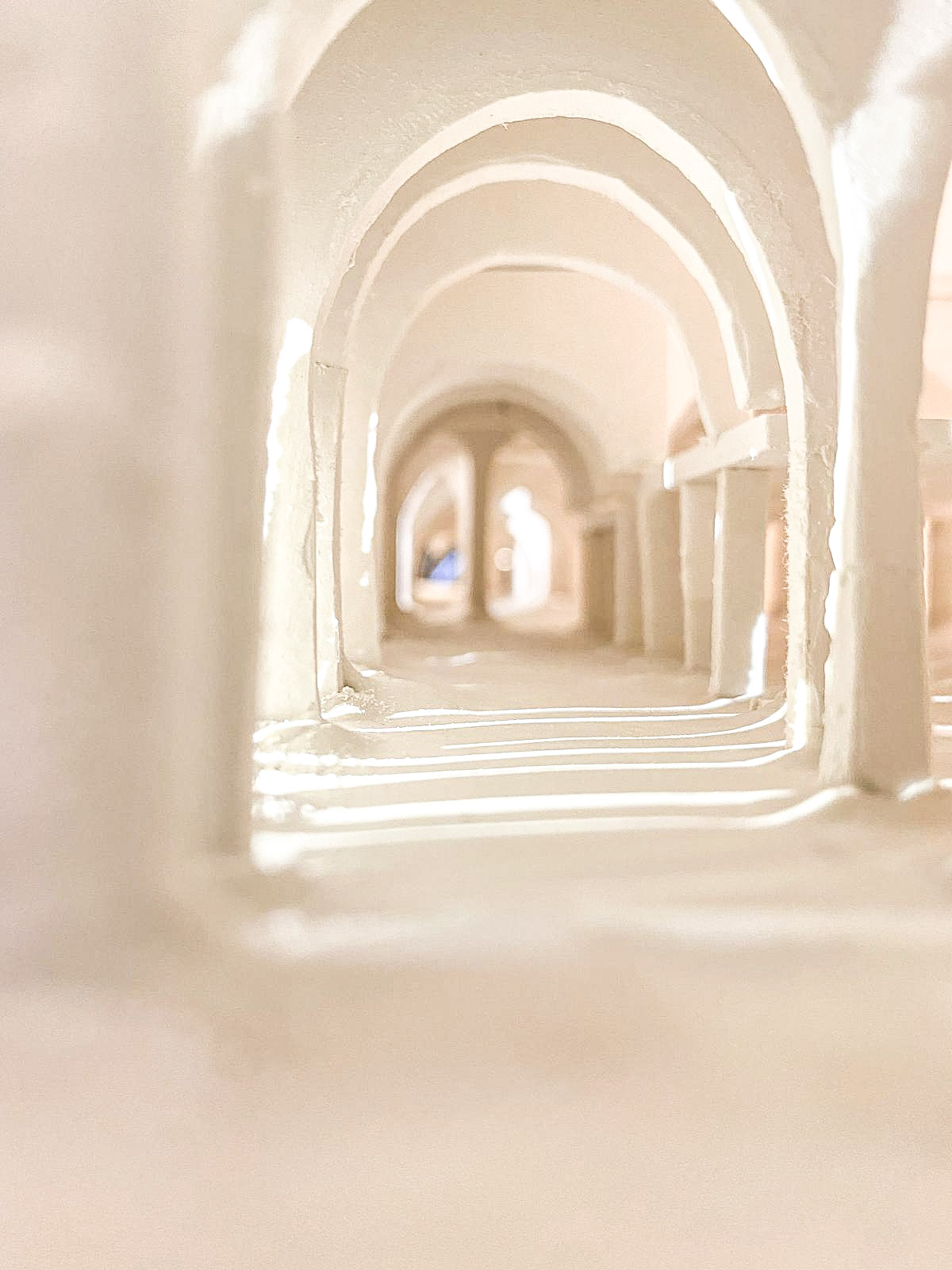

model

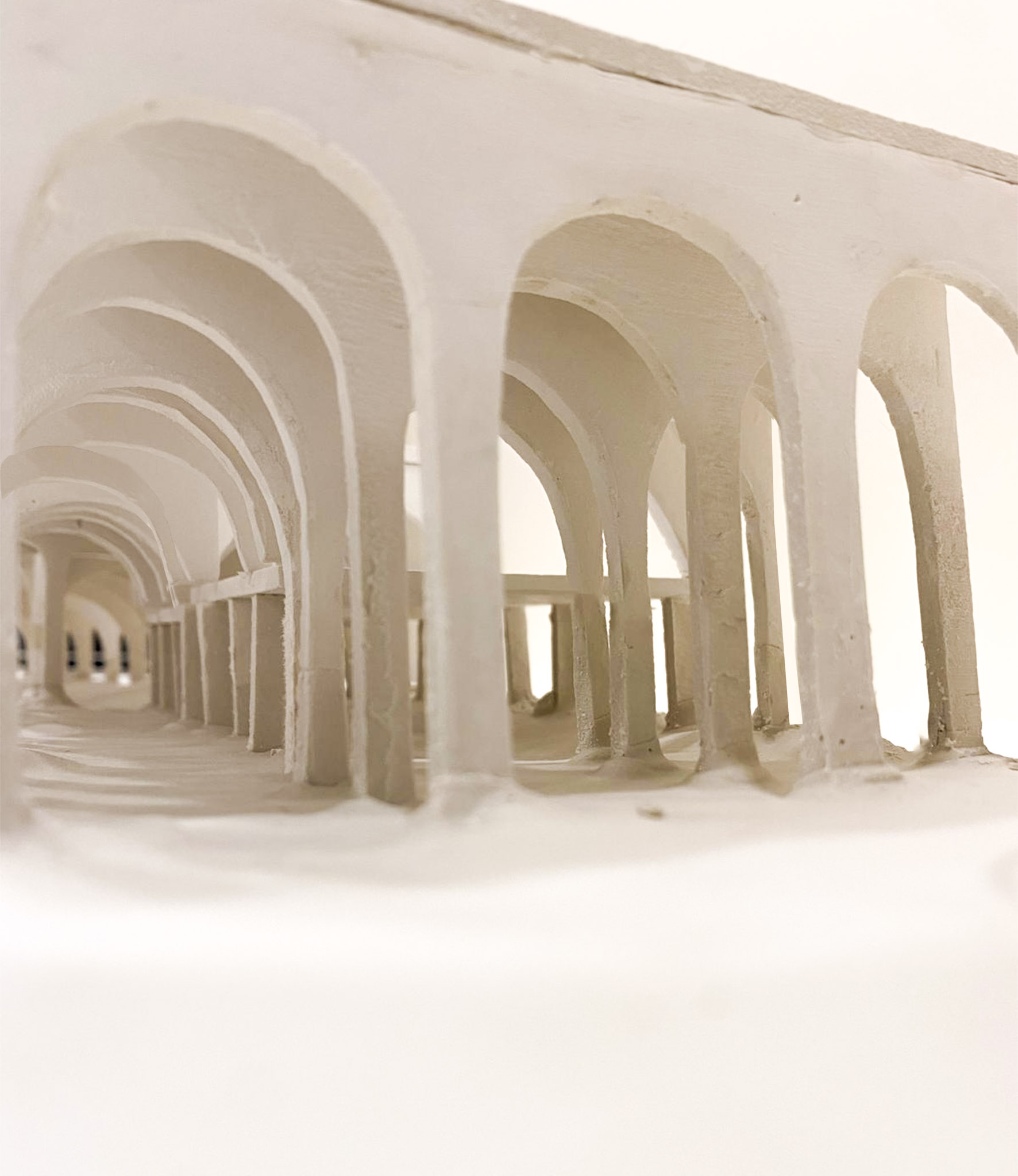

The model was crafted entirely out of plaster at a 1:200 scale.
